Uni-T UT15B Voltage and Continuity Tester

Uni-T UT15B Voltage and Continuity Tester

348535

6935750515020

UT15B

Jauns produkts

10+

Shipping 3-5 b.d.

44,26 € ar PVN

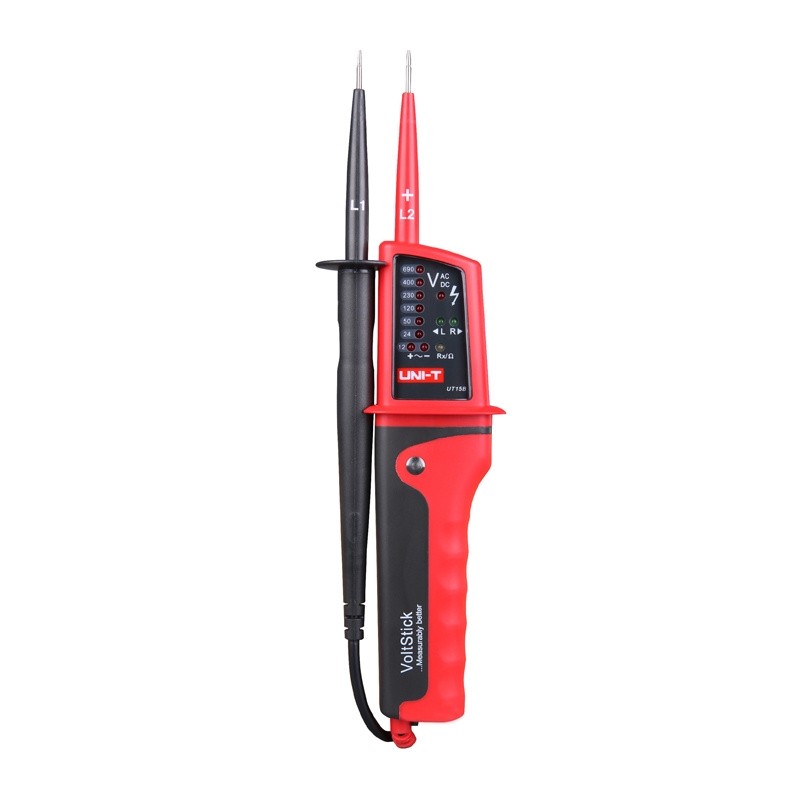

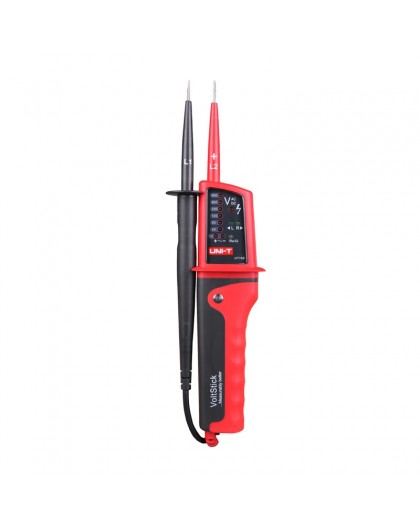

Uni-T UT15B voltage and continuity tester

The Uni-T UT15B is a rugged voltage and continuity tester designed for quick diagnostics of electrical installations. The device allows for AC/DC voltage measurement in ranges from 12 V to 690 V using easy-to-read LED indicators and automatic range switching, which streamlines daily work. The model also offers a circuit continuity test with an audible signal and LED, detection of positive and negative polarity, phase rotation test, and single-probe voltage detection. The rugged design with an IP65 rating increases durability when working in harsh conditions, and the built-in flashlight makes it easier to take measurements in dimly lit areas.

Specifications

ManufacturerUni-T
ModelUT15B
Product typeVoltage and continuity tester
AC/DC LED voltage indicatorYes
12 V range0–12 V
24 V range17 V ± 2 V
50 V range35 V ± 5 V
120 V range80 V ± 15 V
230 V range165 V ± 20 V
400 V range300 V ± 30 V
690 V range510 V ± 40 V
Phase rotation testYes
Phase rotation test range0–690 V, 50–60 Hz
Single-probe voltage detection L2Yes
Single-probe voltage detection range0–690 V, 50–400 Hz
Circuit continuity testYes
Continuity test range0–100 kΩ
Continuity test indicationAudible signal + LED
Polarity detectionYes
Type of polarity detectionPositive and negative
Protection classIP65
Range switchingAutomatic
FlashlightYes
Battery indicatorYes
LCD displayNo
Power supply2 × 1.5 V (R03)
Weight210 g
Dimensions275 × 51 × 30 mm
ColorRed and gray
