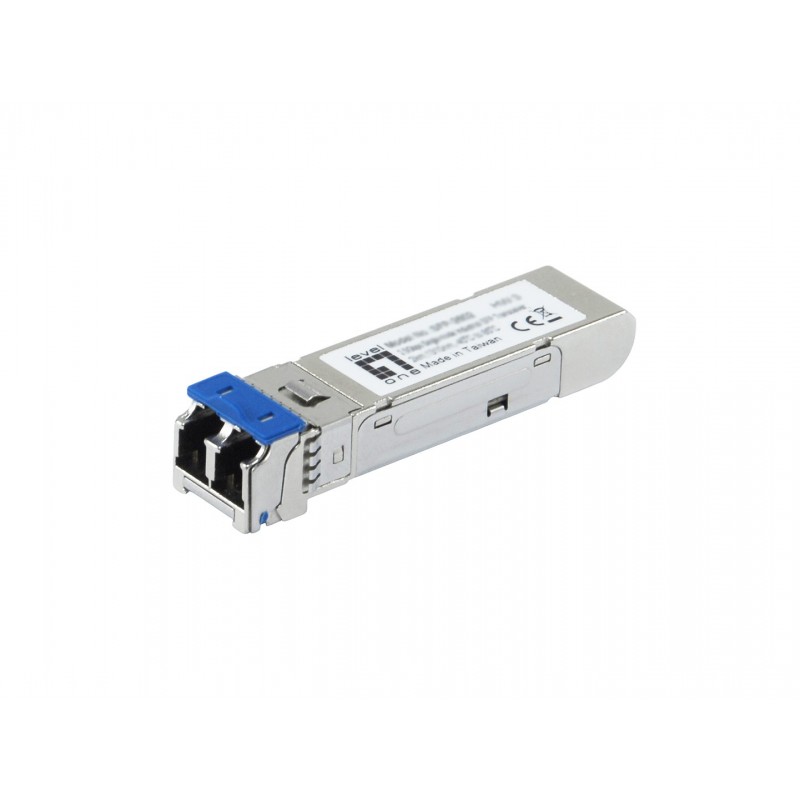

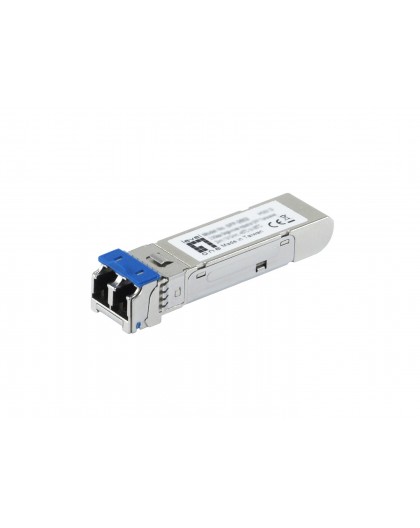

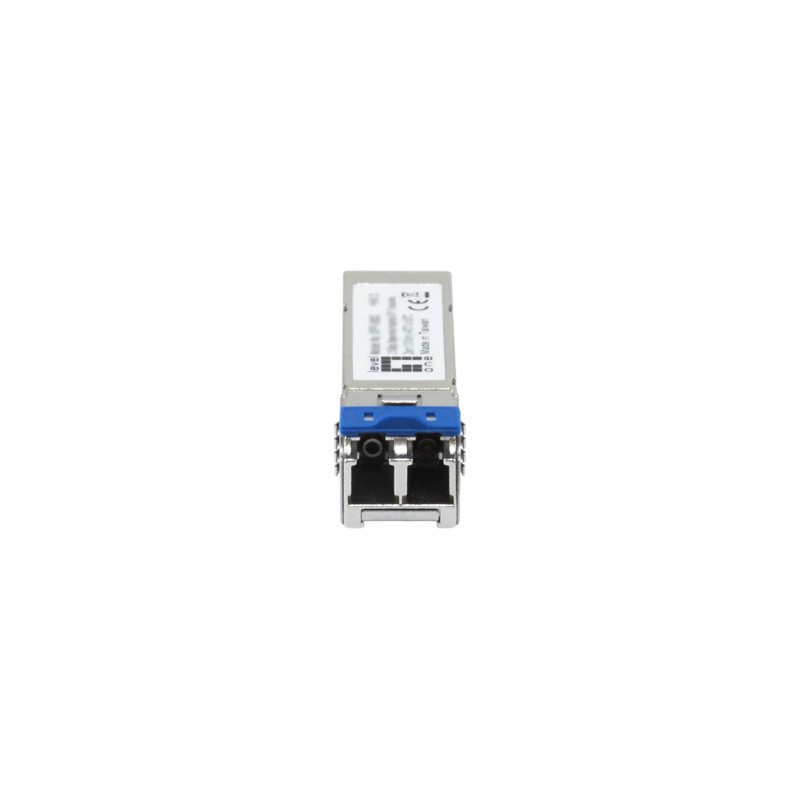

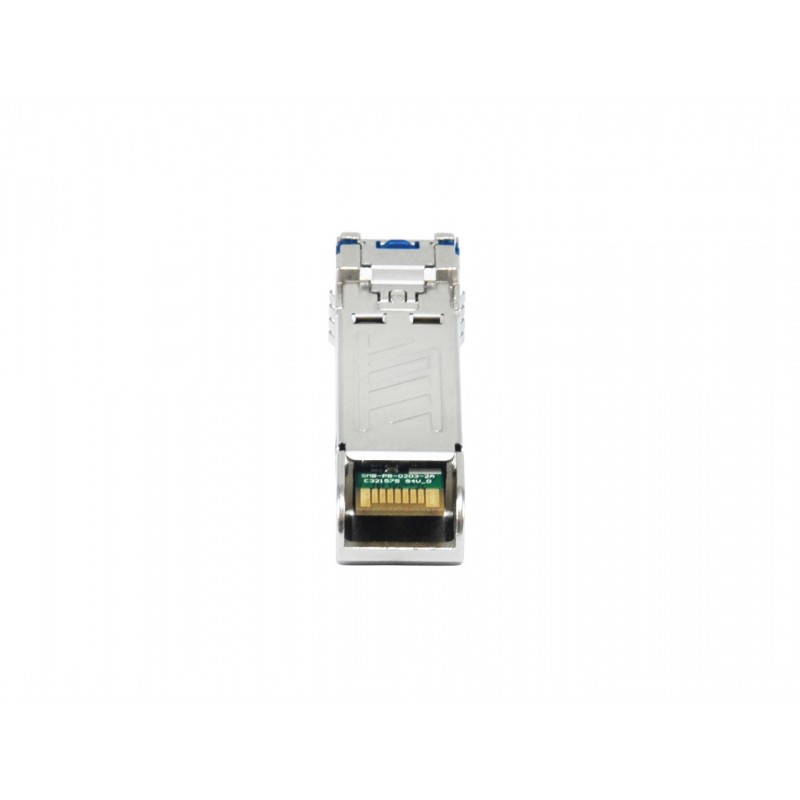

LevelOne 2.5Gbps Single-mode SFP Transceiver, 20km, 1310nm
349477
4015867240014520228
Nauja prekė
10
Pristatymas: 2026-09-16
74,09 € su mokesčiu
| Certificates | |
| Compliance certificates | TÜV mark |
| Compliance certificates | RoHS |
| Compliance certificates | CE |
| Compliance certificates | UL |
| Compliance certificates | CB |
| Compliance certificates | Federal Communications Commission (FCC) |
| Features | |
| Form factor | SFP |
| Hot-swap | Yes |
| Plug and Play | Yes |
| Product colour | Silver |
| Logistics data | |
| Country of origin | Taiwan |
| Customs product code (TARIC) | 8517620000 |
| Master (outer) case gross weight | 5.5 kg |
| Master (outer) case height | 250 mm |
| Master (outer) case length | 343 mm |
| Master (outer) case width | 365 mm |
| Master (outer) cases per pallet | 34 pc(s) |
| Pallet gross height | 164.4 cm |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Products per master (outer) case | 100 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 85% |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -40 - 85 °C |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package depth | 67 mm |
| Package height | 25 mm |
| Package weight | 41.66 g |
| Package width | 110 mm |
| Performance | |
| Copper ethernet cabling technology | 2.5GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Fiber optic connector | LC |
| Interface type | SFP |
| Maximum data transfer rate | 2500 Mbit/s |
| Maximum transfer distance | 20000 m |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Yes |
| Tx power (max) | 0 dBmW |
| Tx power (min) | -5 dBmW |
| Wavelength | 1310 nm |
| Power | |
| Power consumption (typical) | 1 W |
| Weight & dimensions | |
| Depth | 13.4 mm |
| Height | 13 mm |
| Weight | 15.5 g |
| Width | 55.9 mm |
