Uni-T UT262E Non-Contact Phase Sequence Detector
328541
6935750526255UT262E
Nauja prekė
Shipping 3-5 b.d.
104,53 € su mokesčiu

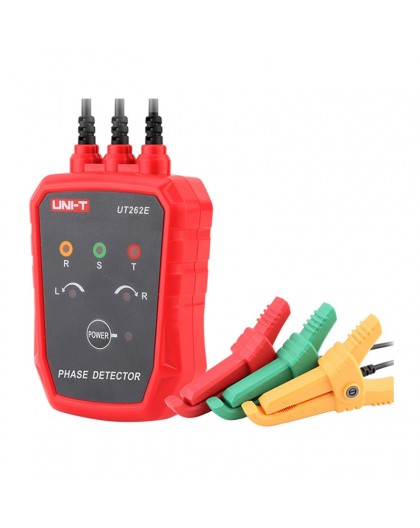

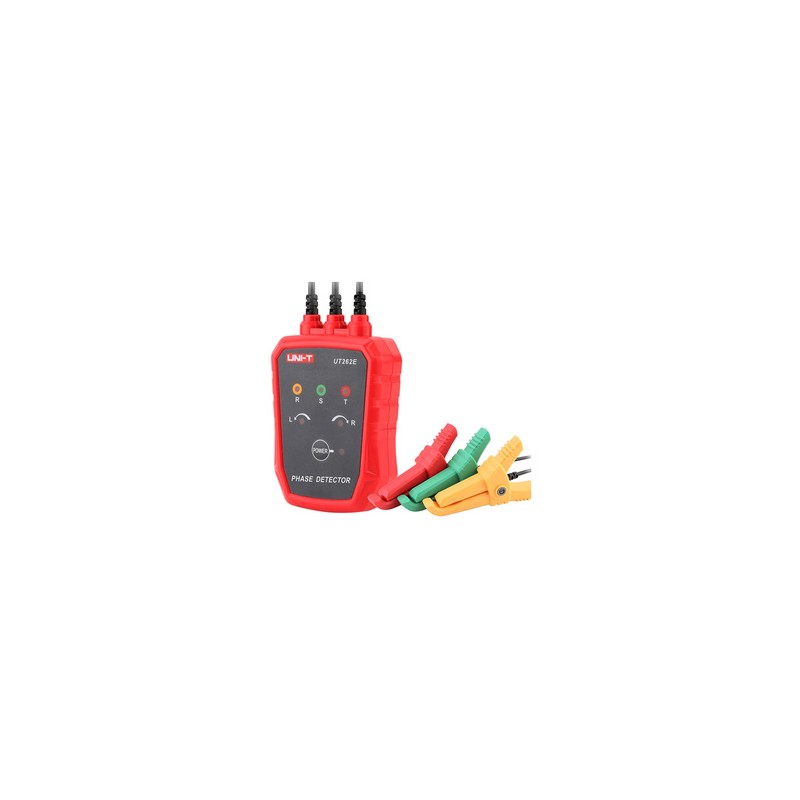

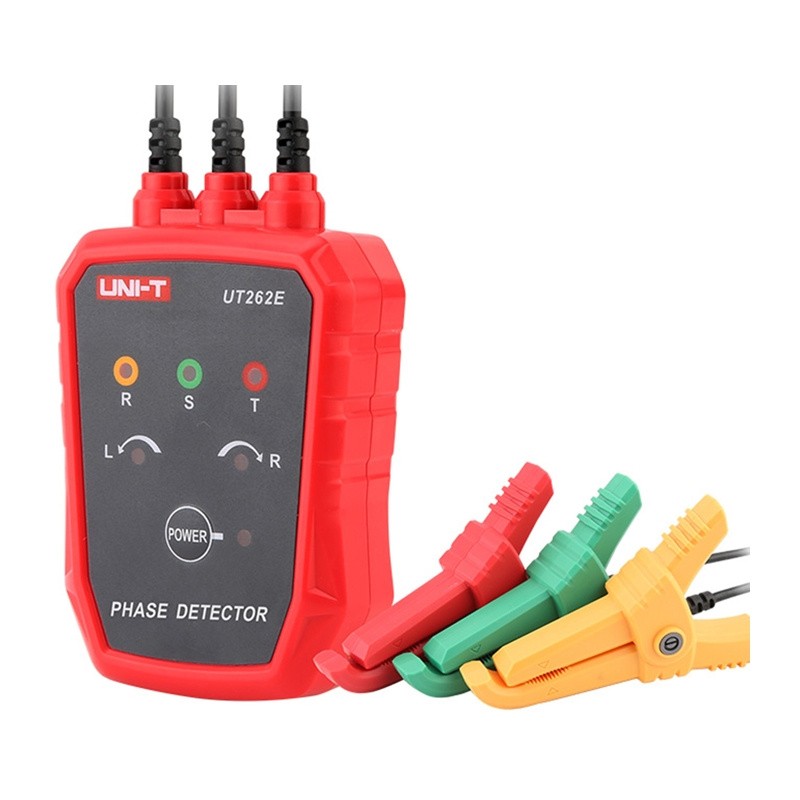

Uni-T UT262E Non-Contact Phase Sequence Detector
The UT262E is a non-contact phase detector in a clamp-on design, engineered for safe operation on three-phase systems without the need to touch exposed wires. This reduces the risk of electrical arcing and minimizes the danger of electric shock during field work. The device allows for quick verification of phase presence, identification of phase sequence, detection of phase loss, and localization of wire breaks, utilizing both audible and visual signals. It is ideal for service work, motor installation, and electrical system maintenance.
Included
- Phase sequence detector
- 2 AA batteries
- Carrying case
- User manual
- Warranty card
- Inspection certificate
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT262E |
| Type | Non-contact phase sequence detector |
| Measurement method | Non-contact (inductive clamps) |
| Voltage range | 70~1000V AC |
| Operating frequency | 45~66 Hz |
| Functions | Phase detection / phase loss / phase sequence / open circuit detection |
| Cable diameter | Ø2~40 mm |
| Cable length | 0.6 m |
| Signaling | LED + buzzer |
| Signal volume | 65~70 dB |
| Auto-off | After approx. 5 minutes |
| Operating time | Over 20 hours |
| Safety class | CAT III 1000V / CAT IV 600V |
| Protection rating | IP52 |
| Power supply | 2 × AA 1.5V |
| Weight | 237.7 g (with batteries) |
| Dimensions | 88 × 30 × 66 mm |
| Certifications | CE, UKCA |
