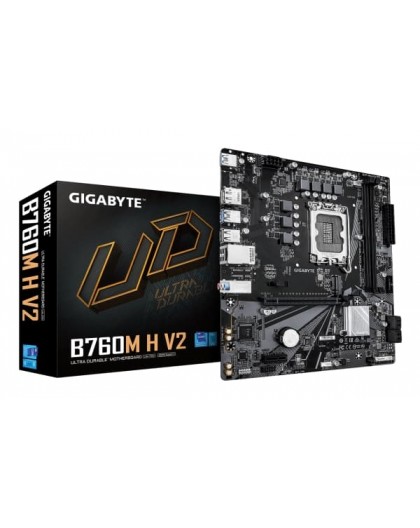

peamine emaplaat Gigabyte B760M H V2

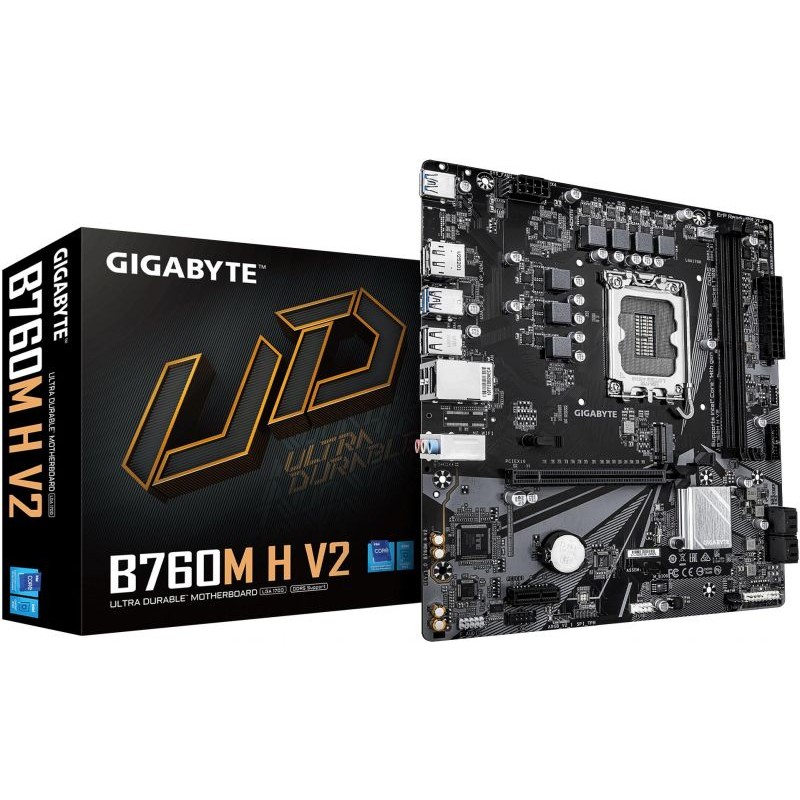

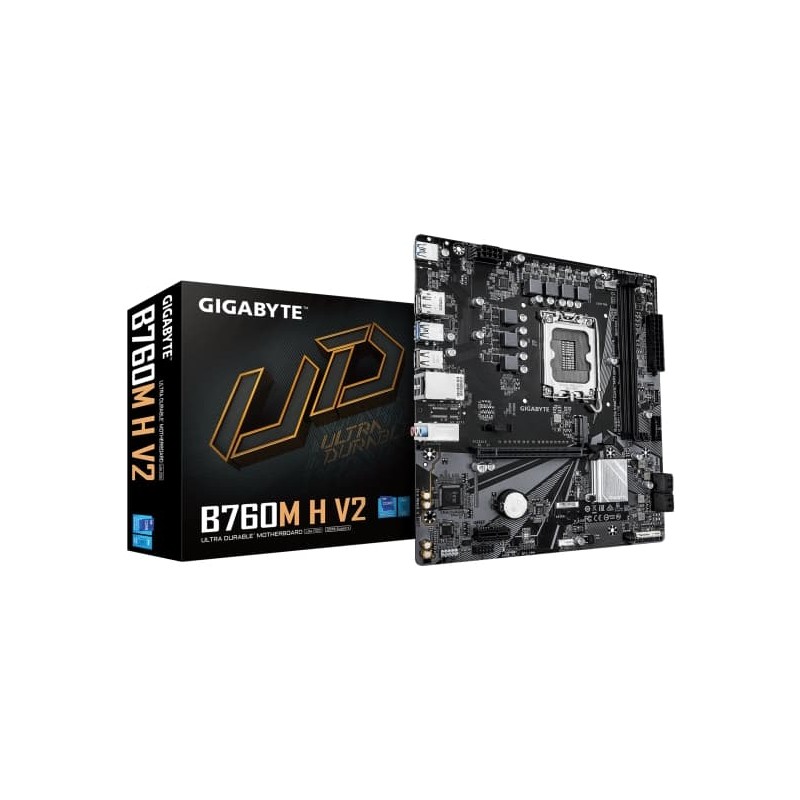

The Gigabyte B760M H V2 1.0 motherboard is built for Intel processors on the LGA1700 socket and uses the Intel B760 chipset. It supports DDR5 memory in two DIMM slots, features PCIe 4.0 M.2 connectivity, essential PCIe expansion slots and a full range of I/O suitable for entry-level and mid-range systems. The microATX format ensures compatibility with many PC cases.

Specifications
Model: Gigabyte B760M H V2 1.0
Device type: Motherboard
CPU socket: Intel LGA1700
Chipset: Intel B760
Form factor: microATX

Memory
Type: DDR5
Slots: 2× DIMM
Channel mode: Dual Channel
Max capacity: 96 GB
Supported speeds: high-frequency DDR5 OC (CPU-dependent)
Profile support: Intel XMP

Storage
M.2: 1× M.2 PCIe 4.0 x4 (2280)
SATA: 4× SATA 6 Gb/s
RAID support: 0 / 1 / 5 / 10

Expansion
1× PCIe 4.0 x16
2× PCIe 3.0 x1

Graphics (via CPU iGPU)
HDMI: up to 4K resolution
D-Sub (VGA): legacy display support

Networking & audio
LAN: 1× Gigabit Ethernet
Audio: HD Audio
Audio jacks: standard 3.5 mm I/O

USB
USB 3.2 Gen1: rear panel + internal headers
USB 2.0: rear panel + internal headers

Other features
RGB/ARGB headers (revision-dependent)
Diagnostic LEDs
Reinforced power connectors
Optimized VRM cooling
TPM support
Board dimensions: 24.4 cm × 21.5 cm

Physical parameters
Weight: 0.75 kg
Gross weight: 1.60 kg
Package dimensions
Length, m: 0.2700
Height, m: 0.0650
Width, m: 0.2250
