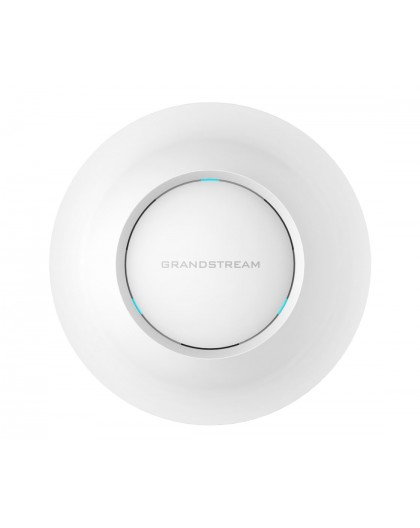

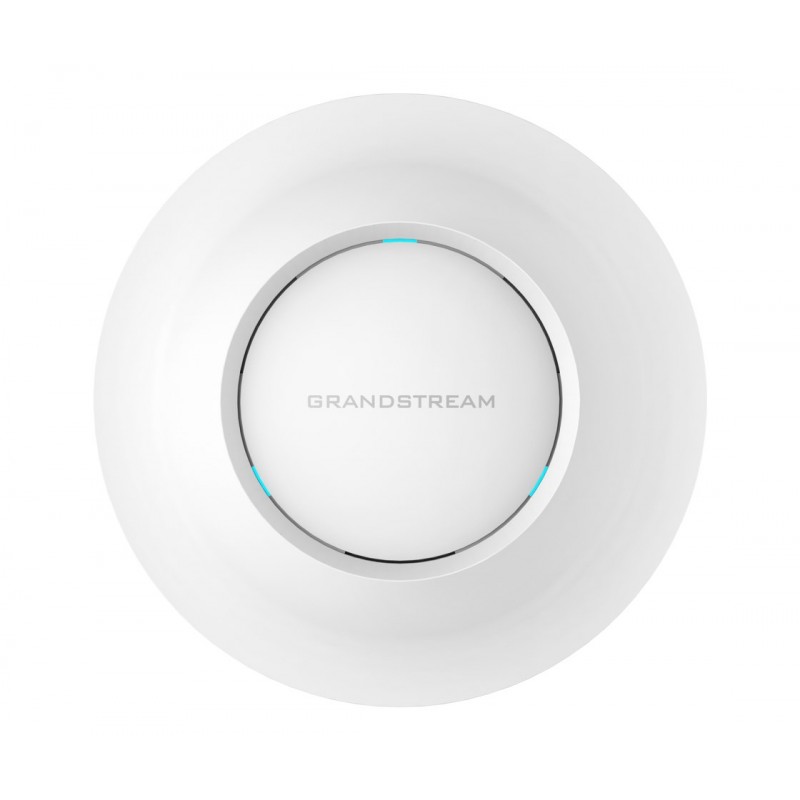

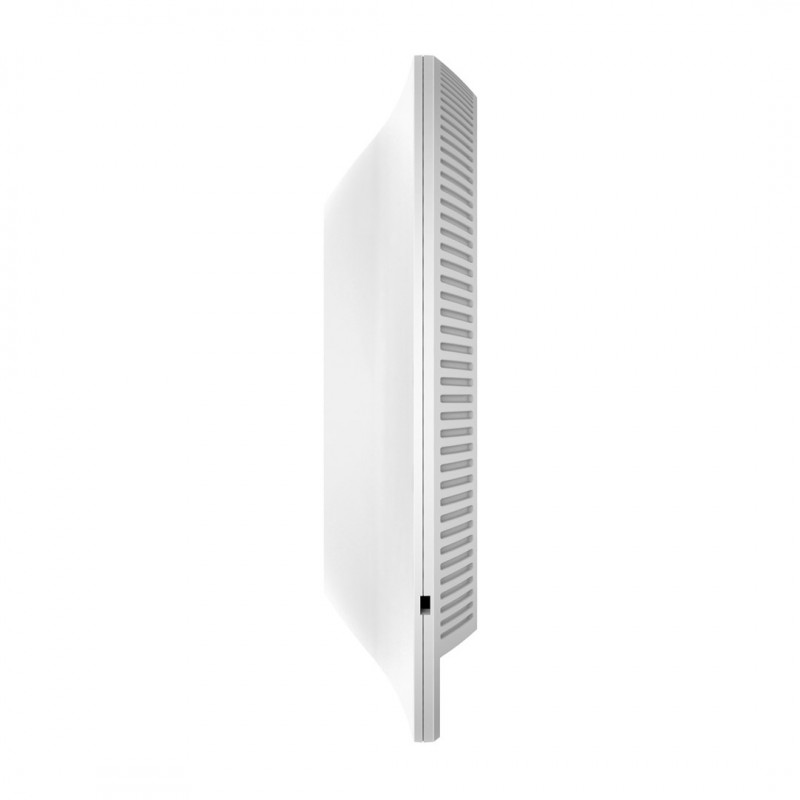

Grandstream GWN 7630 ACCESS POINT
82990
6947273702870GWN7630
New product
10+
Shipping 4-6 w.d. b.d.
110,15 € tax incl.
| Antenna | |
| Antenna gain level (max) | 5 dBi |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Certificates | |
| Certification | FCC, CE, RCM, IC |
| Design | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| LED indicators | Status |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Channel bandwidth | 80 MHz |
| Ethernet LAN data rates | 100 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN data rates | 10 |
| Frequency band | 2.412 - 2.484; 5.18 - 5.825 GHz |
| Maximum data transfer rate | 2330 Mbit/s |
| Maximum outdoor range | 175 m |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.11ac |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.3az |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.11a |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.11e |
| Networking standards | IEEE 802.11g |
| Networking standards | IEEE 802.11n |
| Networking standards | IEEE 802.1x |
| Networking standards | IEEE 802.11b |
| Number of users | 200 user(s) |
| Quality of Service (QoS) support | Yes |
| Receiver sensitivity | 2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: |
| Transmitting power | 27 dBmW |
| VLAN support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Packaging content | |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Quick start guide | Yes |
| Packaging data | |
| Package depth | 247 mm |
| Package height | 86 mm |
| Package weight | 930 g |
| Package width | 258 mm |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power consumption (max) | 16.5 W |
| Power over Ethernet (PoE) | Yes |
| Protocols | |
| Supported network protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| Security | |
| Number of SSID supported | 15 |
| Security algorithms | WEP |
| Security algorithms | WPA |
| Security algorithms | WPA2 |
| Security algorithms | WPA2-PSK |
| Security algorithms | WPA-PSK |
| Weight & dimensions | |
| Depth | 205.3 mm |
| Height | 45.9 mm |
| Weight | 590 g |
| Width | 205.3 mm |
