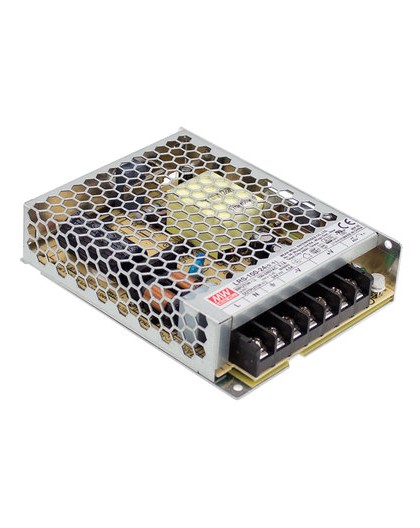

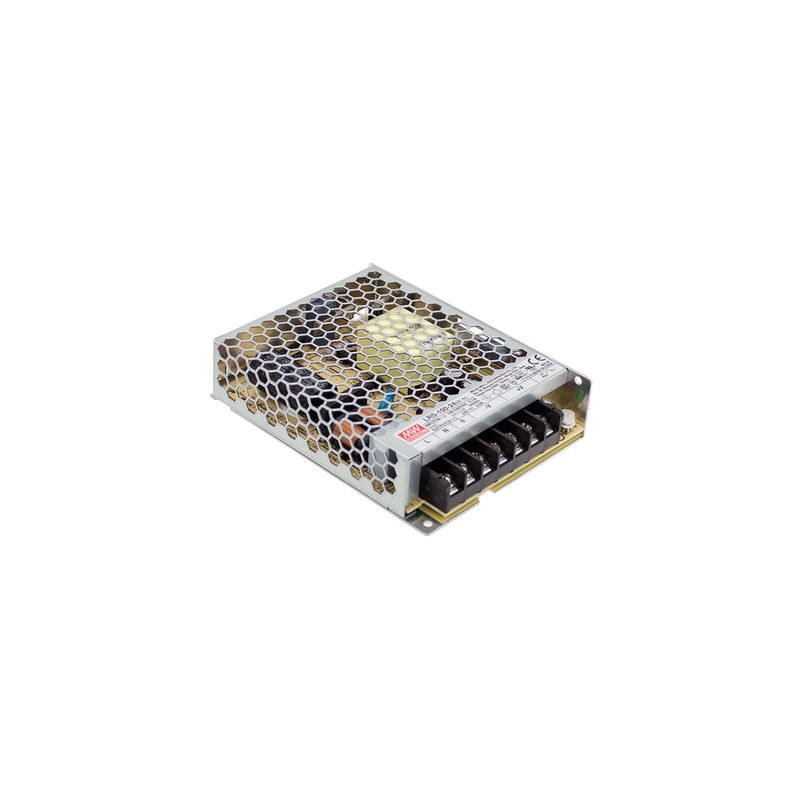

Extra Digital Power Adapter LRS-100-24 24V / 4.5A / 100W

Power supply 24V, 4.5A, 100W.

Features

Ultra thin type 1U profile switching power supply operating in pulse mode.

Small volume, low weight, high efficiency.

Cooling by free air convection.

Protections: short circuit / overload / over voltage.

No load consumption: <0.5W.

Operating altitude up to 5000 meters.

Specifications

Type: switching power supply.

Input range AC: 90-264V. Frequency 47-63Hz.

Output voltage DC: 24V.

DC voltage adjustable range: ±10%.

Rated current: 4.5A.

Rated power: 108W.

AC current: 1.9A/115V, 1.2A/230V.

Ripple and noise: 150mV p-p.

Effieciency: 90%.

Leakage current: <0.75mA / 240V AC.

MBTF: min 705000 hours.

Working temperature: -30°C~+70°C.

Working humidity: 20%-90%RH.

Dimension: 129x97x30mm.

Weight: 0.34kg.
