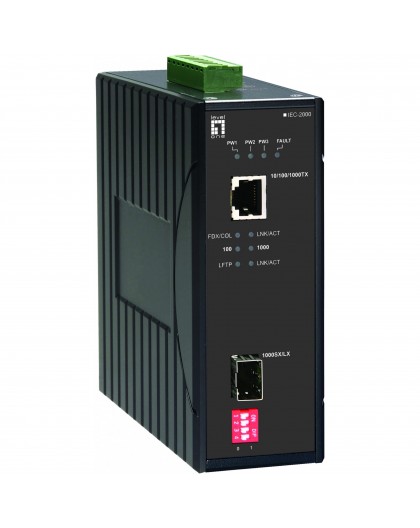

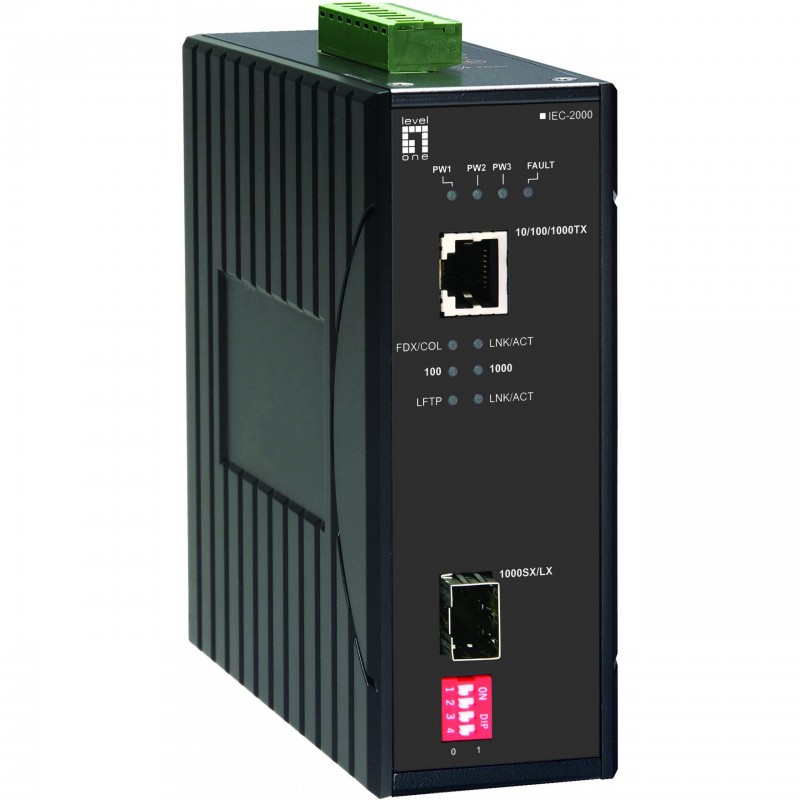

Konverteris IEC-2000 10/100TX100FX 2km
92858
4015867184103IEC-2000
Nauja prekė
10+
Pristatymas: 2026-09-01
349,00 € su mokesčiu
| Certificates | |
| Certification | - ISO9001 - FCC Part 15, Class A - EN61000-6-3 - EN55022 - EN61000-3-2 - EN61000-3-3 - EN61000-6-2 - EN61000-4-2 - EN61000-4-3 - EN61000-4-4 - EN61000-4-5 - EN61000-4-6 - EN61000-4-8 - IEC60068-2-6 Fc - IEC60068-2-27 Ea - FED STD 101C Method 5007.1 |
| Safety | UL508 |
| Features | |
| DIN rail mounting | Yes |
| Housing material | Aluminium |
| Internal | No |
| International Protection (IP) code | IP30 |
| LED indicators | Activity |
| LED indicators | Power |
| LED indicators | Link |
| LED indicators | Status |
| Product colour | Black |
| Logistics data | |
| Country of origin | Taiwan |
| Harmonized System (HS) code | 85176990 |
| Network | |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Converter input interface | 1000Base-TX |
| Converter input interface | 10Base-T |
| Converter input interface | 100Base-TX |
| Converter output interface | 1000Base-LX |
| Converter output interface | 1000Base-SX |
| Duplex system | Half |
| Duplex system | Full |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 |
| Ethernet LAN data rates | 10 |
| Ethernet LAN data rates | 100 |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3x |
| Packet forwarding rate (1 Gbps) | 1488100 pps |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Packaging content | |
| Quick installation guide | Yes |
| Packaging data | |
| Package depth | 92 mm |
| Package height | 236 mm |
| Package type | Box |
| Package weight | 1 kg |
| Package width | 198 mm |
| Performance | |
| Mean time between failures (MTBF) | 665760 h |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SFP |
| Fiber ports quantity | 1 |
| Power | |
| Input voltage | 12 - 48 V |
| Output current (48V) | 0.16 A |
| Power consumption (max) | 7.68 W |
| Weight & dimensions | |
| Depth | 110 mm |
| Height | 135 mm |
| Weight | 800 g |
| Width | 50 mm |
